AT A GLANCE
- For Content Creators and Videographers
- 8K30/5.7K30 360° PureVideo Recording
- 360° Post Reframing, Even Longer Runtime
- Rugged Design, Removable Lens Guards
- Gesture Control, Dual/Single Lens Modes
- Bullet Time, Time-Lapse, InstaFrame
- Active HDR, Loop Recording, Me Mode
- 49' Waterproof, 72MP Photos
- App with Edit Suite and Effects
- Invisible Selfie Stick Feature

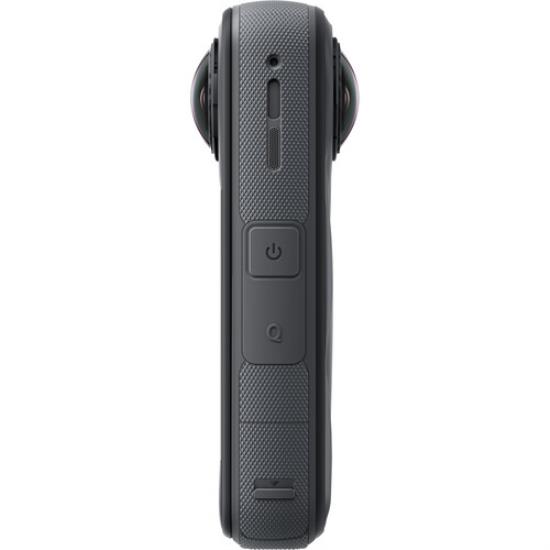

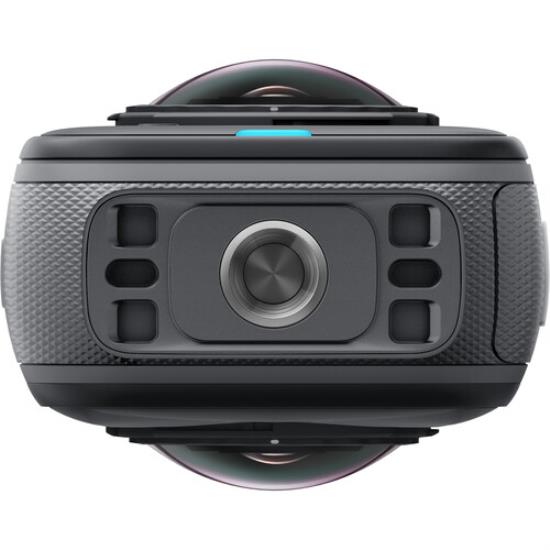

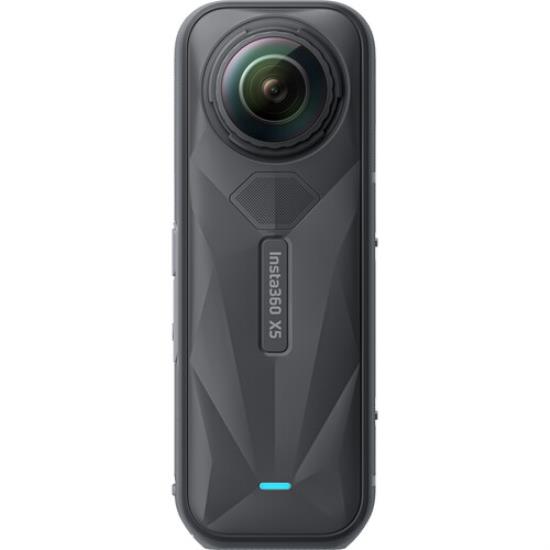

The powerful Insta360 X5 360° 8K Camera, capable of capturing HDR 8K30 360° with PureVideo enhanced low-light technology in dual or single-lens modes, all in one portable action camera. The X5 offers an action-ready design with AI-powered software for an intuitive approach to creating dynamic content in any environment, as well as "Bullet Time" capture, 180 Mb/s bitrates, time shift, loop recording, and time-lapse. The X5 also has an updated rugged design, is natively waterproof up to 49', and has an upgraded rechargeable 2400mAh battery for an increased runtime of up to 88 minutes.
8K30 360° PureVideo
The X5 features ultrasharp 8K resolution, which is 78% more pixels than 5.7K for greater detail and clarity, making reframed video on par with standard camera footage for easier matching edits.
PureVideo features advanced AI noise reduction and dynamic range optimization deliver clear, vivid footage, no matter the situation or light level.
Powerful AI Algorithms
Larger 1/1.28" sensors and a lightning-fast triple AI chip system set a new benchmark for 360° capture. This powerful hardware combination delivers true-to-life colors, stunning clarity, and brighter, more vivid visuals.
The X5 uses supersampling from 11K to 8K, making it more detailed, delivering truly immersive clips. Active HDR Mode is now upgraded to 60 fps to capture stunning details and colors in highlights and shadows, and delivers superb stabilization even in action-packed moments.
Rugged, Replaceable Lens Design
The X5's new replaceable lens design lets you pop out the damaged lenses and easily snap in fresh ones with minimal downtime.
You can also say goodbye to scratches, cracks, and heartache thanks to the X5's ultra-hard optical film, boasting a 100% improvement in drop resistance compared to X4, effectively resisting scratches from keys, coins, and other metals.
Multi-Cam Shots and Instaframe Mode
A multi-cam setup in one device, the X5 packs every possible angle into a single shot-no extra gear, no retakes, no missed moments.
With 360° video capturing everything around you, hit record and pick the best angles later with AI-powered reframing tools in the Insta360 app. Get perfectly framed video with zero editing by choosing a Selfie View or Fixed View before filming, and get an instantly sharable flat video. You can simultaneously capture a full 360° video while you capture flat video, ready for you to create additional edits or to capture unexpected moments.
Ultra-Wide POV
You can use the X5 like a traditional action camera and shoot crisp 4K60 first-person videos. You can go even wider with MaxView in FreeFrame Video, featuring a 170° FOV in 4K30.
The X5 processes 72MP photos in-camera, delivering high-quality, ready-to-share images with low noise and high-quality color.
Wind Guard and Clear Audio
Shredding trails or riding waves, your audio stays crystal clear with the new multi-layer Wind Guard with steel mesh that silences wind gusts. The X5's upgraded audio algorithm cuts through wind and environmental noise for a superior, immersive sound, even while cycling or motorcycling.
A new intelligent audio mode that clarifies voices without the need for any extra microphones, perfect for vlogging.
Invisible Selfie Stick for Third-Person Views
When the X5 is attached to a selfie stick, the stick disappears in your edit, enabling you to capture aerial angles and third-person perspectives that can be achieved without a second operator.
AI Gesture Control
You can now use hand gestures to start/stop recording or take a photo, which is perfect for group shots, noisy locations, mounting on a selfie stick, when wearing thick gloves, or simply not disturbing others in the area with sound such as voice control.
Time-Lapse, Time Shift, Bullet Time Modes
- 11K Time-Lapse: 360° time-lapse video is now available on the X5 in 11K, capturing a sweeping view over time from a stationary position.
- 8K TimeShift: Users can shoot a creative video in an easy-to-use mode with a selfie stick while walking around.
- Get "Bullet Time" (reference from The Matrix) slow-motion video using the 5.7K120 Bullet Time mode on the X5, which allows you to achieve cinematic slow-motion looks using higher frame rates and resolutions.
Insta360 App
- Insta360 Studio and the companion app provide numerous tools to edit, adjust, and share your videos.
- AI Frame identifies the most important elements of your shot and suggests the best views. You can export without editing by picking a forward or selfie view with a single tap, and you're done, with no more waiting around.
- The virtual joystick or even move your phone to reframe your videos, sharing your edits instantly.
- Say goodbye to distortion with just one tap, for a more natural perspective for landscapes and more
- The app provides numerous effects and features including AI Warp, Sky Swap, Bullet Time, Starlapse, Timeshift, Time Lapse, and Fly Lapse modes.
Insta360 Cloud
- Automatically backs up your files to the cloud-accessible on any device-and can auto-delete them from the SD card to free up space.
- Share your world instantly with a customizable link.
- Send single or multiple clips at once to friends, family, and followers.
- Edit and export on the cloud, anytime, anywhere.
- Leave the app running in the background and use your device uninterrupted.
New Removable Lens Guards
The X5 is designed with removable lens guards, allowing you to transport the camera into the field without damaging the lenses. Optional, separately available Premium lens guards are made from clear, tempered glass that is scratch-resistant and crystal clear and can be used while shooting.
2.5" Touchscreen
The bright touchscreen is made from durable Gorilla Glass and features a large 2.5" size, and it allows you to control the camera, select shooting modes, change settings, preview your images and footage, and more.
2400mAh Battery
The X5 features a higher battery capacity than its predecessor with its removable 2400mAh battery. It has been tested to run at 5.7K30 360° video mode for up to 135 minutes of recording time. In Endurance mode, it can record 5.7K30 for up to 185 minutes, and in 8K30 mode, it can run for up to 88 minutes.
FlowState Stabilization
Â
From rocky roads to rolling waves, the X5 provides smooth and steady image stabilization, no matter what adventure you're on.
360° Horizon Lock
No matter how the X5 is mounted, held, or utilized, your video will come out steady and balanced with the horizon with 360° Horizon Lock.
Waterproof Design
Dive into the water with your X5 without a case, as the camera has been updated to be waterproof down to 49'.
It can also utilize a separately available Invisible Dive Case that allows shooting down to 197'.
Snap-On Mounting
Switch your X5 setup in a flash with an all-new magnetic mounting system. Quick mounting is designed for activities like cycling when you want shots from multiple positions and need quick adjustments. The battery can be swapped in and out easily, making sure you always stay powered up.
Capture Modes
- Twist to Shoot Mode: Simply rotate your selfie stick back and forth twice to start/stop filming or take a photo. There's no need to take your gloves off when you're on the slopes.
- Gesture Control: The handiest way to shoot, this mode allows you to film and take pics using only your palm and the peace sign.
- Voice Control 2.0: Say hello to true hands-free filming with an advanced voice control algorithm.
Stitching Resolution 8K (Photo)
                 8K (Video)
Internal/External Stitching Internal, External Stitching
360 Stitched Video Format  7680 x 4320 at 24, 25, 30 fps (INSV)
                      5760 x 2880 at 24, 25, 30 fps (INSV)
                      5760 x 2880 at 24, 25, 30, 50, 60 fps (INSV)
                      3840 x 1920 at 24, 25, 30, 50, 60, 100 fps (INSV)
Still Image Support  DNG / INSP
                72 MP
                18 MP
Number of Lenses 2
Image Sensor 1/1.28"-Type CMOS
Sensor Resolution Effective: 72 Megapixel (11,904 x 5952)
Focal Length 6mm
Maximum Aperture f/2
Lens Elements 2
Angle of View Ultra Wide: 170° (Per Lens)
Video Format 3840 x 2160p at 24/25/30/60 fps (200 Mb/s MP4 via H.264/AVC, H.265/HEVC)
            2720 x 1536p at 24/25/30/50/60/100/120 fps (200 Mb/s MP4 via H.264/AVC, H.265/HEVC)
           1920 x 1080p at 24/25/30/50/60/100/120 fps (200 Mb/s MP4 via H.264/AVC, H.265/HEVC)
Media/Memory Card Slot Single Slot: microSD/microSDHC (UHS-I) [1 TB Maximum / U3/V30 or Faster Recommended]
Built-In Mic Yes
Channels 2.0-Channel Stereo
Audio Format AAC
Sampling Frequency AAC: 48.0 kHz
Display Type Fixed Touchscreen LCD
Display Size 2.5"
Built-In Speaker No
Environmental Resistance Water-Resistant to 32.8' / 10 m (Unrated)
Wireless Wi-Fi 5 (802.11ac) / Bluetooth 5.2Â
Mobile App Compatible Yes: Android & iOS
                    App Name: Insta360
                    Functionality: Access Stored Files, Firmware Update, Remote Control, Setup, View Live Feed
IP Streaming No
Tripod Mounting Thread 1x 1/4"-20 Female (Bottom)
Inputs No
Outputs 1x USB-C 3.0
Headphone Jack No
Battery  Rechargeable Lithium-Ion Battery Pack, 2400 mAh
       Max Runtime: 3 Hours per Charge
       Battery Charge Time: 0.5 hours
Charging Method USB
Power Adapter No
Operating Temperature -4 to 104°F / -20 to 40°C
Dimensions (W x H x D)Â 4.9 x 1.8 x 1.5" / 124.5 x 46 x 38.2Â mm
Weight 7.1 oz / 200 g (Body Only)
