Product Highlights

• For Content Creation and Vlogging
• Coin-Shaped Transmitter with Display
• Camera-Mount Receiver
• 32-Bit Float Internal Recording
• 3-Mic Array, 3 Pickup Modes
• Timecode Support
• 1312' Transmission Distance
• Auto Gain Control, AI Noise Cancelling
• 10-Hour Battery Life
• Direct Pairing to Insta360 Cameras

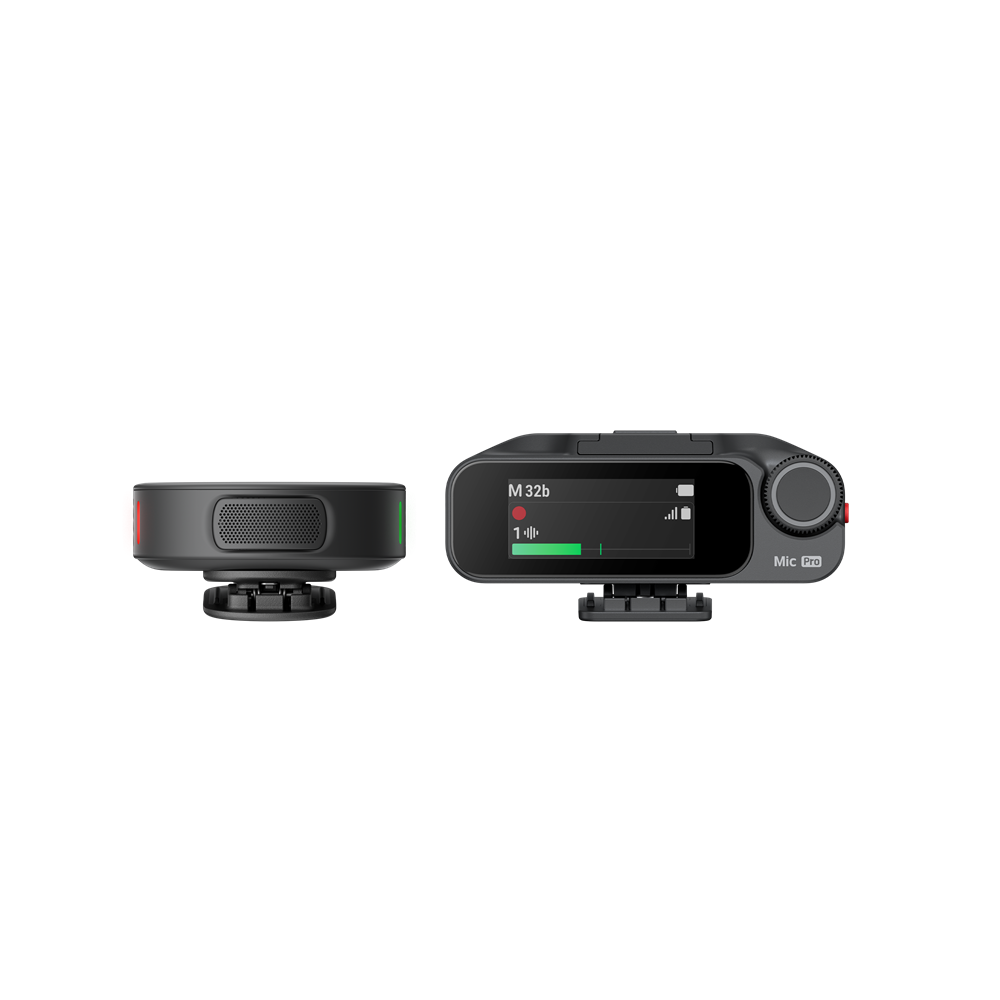

The Insta360 Mic Pro Wireless System is a highly compact and lightweight 2.4 GHz wireless system designed to connect to a wide variety of devices. The included coin-shaped transmitter features a 1.22" E-Ink display that can be customized using the Insta360 app with your logo or other graphics. A camera-mount receiver with integrated cold shoe mount and integrated display and controls make for intuitive adjustment of recording parameters. The components communicate to one another from up to 1312' via 2.4 GHz wireless.

Transmitter with 32-Bit Onboard Recording

The transmitter easily records 32-bit float audio into its 32GB internal storage. An NPU-powered AI noise cancelling chip, auto gain control, and low-cut filter make for crystal-clear sound capture. Connect the transmitter to your computer or mobile device via USB-C to quickly export your files.

Receiver with Onboard Controls

The included camera-mount receiver features a touchscreen display and dial for intuitive adjustment over your wireless system. Use the 3.5mm TRS output for connection to compatible cameras and recording devices. The included USB-C adapter can be used to directly insert the receiver into a laptop or mobile device, with the option to add a Lightning adapter with a separately available accessory. On its own, the receiver can accommodate up to two audio channels, but optional accessories and built-in modes can expand that to four signals.

Multi-Cam and Multi-Person Modes

Toggle Multi-Person recording to route up to four transmitters to the receiver for four independent audio tracks synced together. Toggle Multi-Cam recording to pair up to four receivers to a single transmitter for synced audio. This function only works with the separately available Camera Adapter when paired with compatible Sony cameras. The receiver also supports timecode sync for streamlined postproduction.

Customizable E-Ink Display

A 1.22" E-Ink 6-color display on the transmitter supports images, logos, and other graphics for a professional appearance. Upload your desired image using the Insta360 app.

3-Mic Array and Directional Pickup Modes

A 3-microphone array ensures a wider sound field capture. Choose between three pickup modes—supercardioid for solo streams, ASMR, and voiceover; figure-8 for interviews and two person conversations; and omnidirectional for versatile capture. Use a separately available USB-C to 3.5mm adapter to make the transmitter compatible with a lavalier microphone for a more professional appearance.

Auto Gain Control, Voice Tone Presets

The transmitter automatically adjusts volume levels based on your vocal intensity without requiring manual gain. Two different modes can be toggles for different noise environments. Select between three different voice tone presets—standard, rich, and bright—to accentuate different tones within human speech.

Direct Camera Connection

Using Bluetooth 5.4 wireless technology, the Mic Pro transmitter connects directly to your Insta360 X5, Ace Pro 2, and GO Ultra camera models. Record high-fidelity 48 kHz audio to the action camera for simplified workflow.

Long Battery Life, 5-Minute Fast Charge

A 11-hour battery life with the receiver and a 10-hour battery life with the transmitter support all day recording to your camera, smartphone, or X5, Ace Pro 2, and GO Ultra action cameras. The components can be charged quickly in just five minutes to support an additional 1.5 hours of use.

Wireless Technology  Digital 2.4 GHz / Bluetooth

Diversity  Non-Diversity

RF Frequency Band  2400 to 2484 MHz

Max Operating Range  1312.3' / 400 m

Max Transmitters per Band  4

Encryption  No

Built-In Recorder  Yes (on Transmitter via Built-In Storage)

Timecode Support  Yes

Mobile App Compatible  Yes: Android & iOS

Receiver Type  1x Camera-Mount

Mounting Options  Shoe-Mount (with Included Hardware)
                              USB-C Plug-In (with Included Adapter)
                              Lightning Plug-In (with Non-Included Hardware)

Antenna  1x Internal

Number of Audio Channels  4

Audio I/O  1x 1/8" / 3.5 mm TRS Unbalanced Output
                 1x 1/8" / 3.5 mm TRS Unbalanced Input

Network I/O  No

USB/Lightning Connectivity  1x USB-C Female (Charging)
                                              1x USB-C Male (Audio)

Frequency Response  20 Hz to 20 kHz

Display  LCD (Non-Backlit)

Power Requirements  Battery

Included Transmitters  1x Clip-On with Microphone

Antenna  Internal

Input Level  Microphone

Audio I/O  No

Bias/Plug-In & Phantom Power  N/A: No External Mic Support

USB I/O  1x USB-C (Audio)

Auto-Level/Gain  Yes

Frequency Response 20 Hz to 20 kHz
                                   100 Hz to 20 kHz

Sync Method  2.4 GHz QPSK

Display  Unspecified Backlit Display

Microphone Type  3x Built-In (Clip-On Transmitter)

Polar Pattern  Figure-Eight, Omnidirectional, Supercardioid

Frequency Response  20 Hz to 20 kHz (Low Cut Filter Off)
                                    100 Hz to 20 kHz (Low Cut Filter On)

Maximum SPL  130 dB

Sensitivity  -38 dBV (@ 1 kHz, 94 dB SPL)

Color  Black

Receiver Battery Type  1x Built-In Rechargeable - 410 mAh

Receiver Battery Life  11 Hours

Transmitter Battery Type  1x Built-In Rechargeable - 240 mAh

Transmitter Battery Life  10 Hours

Battery Charging Time  5 to 60 Minutes

Dimensions

• Receiver:
• 2.2 x 1.1 x 0.8" / 55.8 x 27.7 x 21 mm
• Transmitter:
• 1.5 x 0.5" / 38 x 12.2 mm

Weight

• Receiver:
• 1.1 oz / 29.8 g
• Transmitter:
• 0.7 oz / 19.7 g
