AT A GLANCE

• For Mic 3 Wireless System
• Transmitter with Onboard Recording
• Built-In Omnidirectional Microphone
• Dual-Band Wireless and Bluetooth 5.4
• 1312' Transmission Distance
• 32-Bit Float Recording
• Embedded Timecode Support
• 8-Hour Battery Life

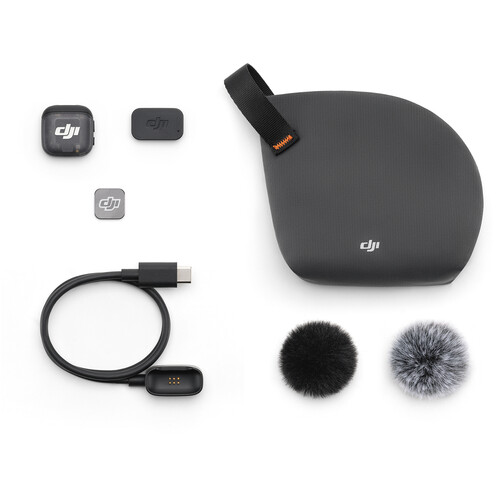

The DJI Mic 3 Clip-On Transmitter/Recorder is a transmitter with both built-in microphone and onboard recording capabilities for seamless audio recording. Use in tandem with a separately available receiver or expand your preexisting Mic 3 wireless system. The transmitter utilizes dual-band 2.4 and 5.8 GHz technology, as well as Bluetooth 5.4 technology, to communicate with the receiver, or even directly to your DJI Osmo series camera from up to 1312' away.

The transmitter supports 32-bit float internal recording, Lossless Audio mode, and dual-file recording to save both an original track and algorithm-enhanced version. Onboard controls toggle two-level noise cancellation, facilitate linking between devices, and start/stop internal recording. The transmitter embeds timecode data into its internal recording files for efficient postproduction workflow. An internal battery keeps the transmitter running for 8 hours at a time.

Wireless Technology  Digital 2.4/5.8 GHz / Bluetooth

Diversity  Non-Diversity

RF Frequency Band  2400 to 2483 MHz / 5150 to 5850 MHz

RF Channel Scanning  Auto-Scan

Max Operating Range  1312.3' / 400 m (Line of Sight)
                                     262.5' / 80 m (with Obstruction)

Max Transmitters per Band  4

Built-In Recorder  Yes (on Transmitter)

Timecode Support  Yes

Mobile App Compatible  Yes: Android & iOS
                                      App Name: DJI Mimo

Included Transmitters  1x Clip-On with Microphone

Antenna  Internal

Input Level  Line

Audio I/O  No

USB I/O  No

Muting  Off/On Switch

Auto-Level/Gain  Yes

Sync Method  2.4 GHz QPSK

Display  Single-LED Indicators Only

Transmitter Battery Type  1x Built-In Rechargeable - 137 mAh

Transmitter Battery Life  8 Hours

Battery Charging Time  50 Minutes

AC/DC Power Adapter  No

Input Power  5 VDC

Dimensions  1.1 x 1.1 x 0.6" / 28.8 x 28.3 x 16.4 mm

Weight  0.6 oz / 16 g
