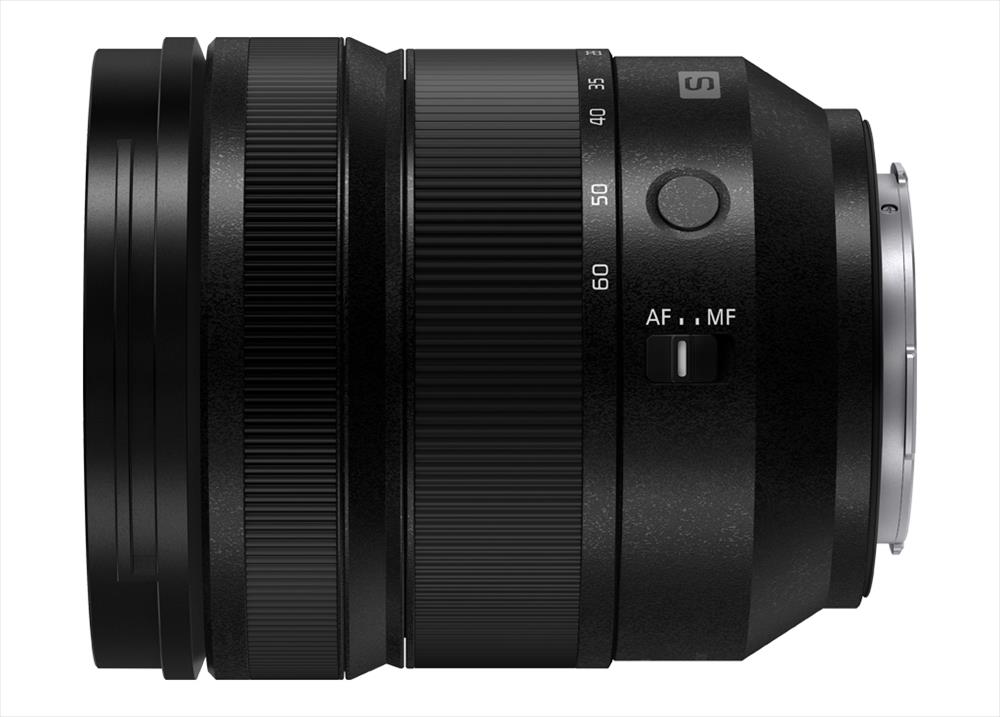

AT A GLANCE
• F2.8 brightness throughout the zoom range
• Versatile coverage from 24mm wide-angle to 60mm standard
• Closest focusing distance is just 0.19m at 24-30mm / 0.33m at 60mm
• A compact and lightweight lens : φ 84.0 x 99.9mm / 544g
• Dust/Splash/Freeze resistant and fluorine coating
• LUMIX S series lens first: Switchable to control ring
• Equipped with a focus button assignable to shooting features
• Supports manual focus while zooming
• Fewer lens elements without compromising image quality
• Streamlined components while ensuring structural integrity
• Optimized performance from each lens group with minimal elements
• Prioritizing compactness, the telephoto end was set at 60mm
When the focus mode is set to AF, the focus ring can be used as a control ring.
The direction of ring rotation can be switched left or right.
Lens Construction 14 elements in 12 groups (3 aspherical lenses, 1 UED lens, 2 ED lenses)
Mount L-Mount
Focal Length f=24-60mm
Aperture Type 9 diaphragm blades / Circular aperture diaphragm
Maximum Aperture F2.8
Minimum Aperture F22
Closest Focusing Distance 0.19m/0.62ft (at focal length 24-30mm) / 0.33m/1.08ft (at focal length 60mm)
Maximum Magnification 0.30x (at focal length 30mm) (0.25x at focal length 24mm, 0.22x at focal length 60mm)
Diagonal Angle of View  84°(Wide) - 40°(Tele)
Dust and Splash Resistant Yes*
Recommended Operating Temperature -10? to 40? (14? to 104?)
Filter Size φ77mm
Max. Diameterφ 84.0mm / 3.31inch
Overall Length  Approx. 99.9mm / 3.93inch (from the tip of the lens to the base side of the lens mount)
Weight Approx. 544g / 1.20lb (excluding lens cap, lens rear cap and lens hood)
